BSC 2018: PANG print layout

I finally got around to laying out the 1956 PANG for the first printing. As you can see from the pictures below, I am trying to remove the need for supports which will mark the surface of the final print.

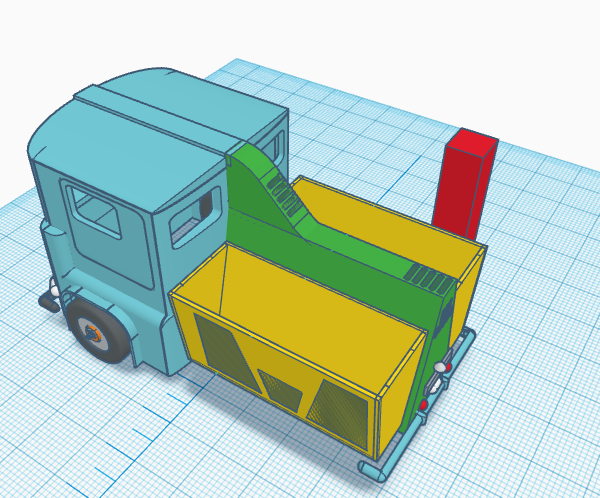

Final draft for reference
Final draft for reference
Laid out in TinkerCAD for printing
Laid out in TinkerCAD for printing

I chose not to break out the rear section or the bins for initial printing. I likely will in the final version, as it will speed up print time and make it cleaner.

Cura print layout
Cura layout, with approx. print time. Note that my printer (Ender 2) has a fairly small print bed, so this will fit on it



One final note: I am certain that there will be tweaks needs to be this and I am missing things, namely an interior and side mirrors to start.
